Gallmac 360° Hydrostatic 4WD/4WS Multi-Task Tool Carriers
High-Capacity Wheeled Multipurpose Excavator
Gallmac WMW-115
Featuring a turbocharged 108 HP Perkins engine, 4-wheel drive and steer, and high-output hydraulics, the WMW-115 delivers exceptional breakout and lifting capabilities.
Gallmac WMW-115 Engineering Specification Table
| Subsystem | Engineering Parameter | US Standard (Imperial) | Metric (SI Units) |
|---|---|---|---|
| Engine | Engine Make & Model | Perkins 1004-40T 244 cu. in. Turbocharged Fastram | Perkins 1004-40T 4000 cc Turbocharged Fastram |
| Engine | Max Power & Torque | 80.5 kW (108 HP) at 2400 RPM / 385 Nm at 1400 RPM | 80.5 kW (108 HP) at 2400 RPM / 385 Nm at 1400 RPM |
| Transmission | Travel Speed (Forward/Backward) | 0 to 16 mph | 0 to 26 km/h |
| Steering | Minimum Steering Radius (Inner / Outer) | 79 in. / 173 in. | 2,000 mm / 4,400 mm |
| Hydraulics | Main Working Pump Delivery | 169 qts./min at 280 bar | 156 lt/min at 280 bar |
| Hydraulics | Auxiliary Gear Pump Delivery | 39 qts./min at 200 bar | 37 lt/min at 200 bar |

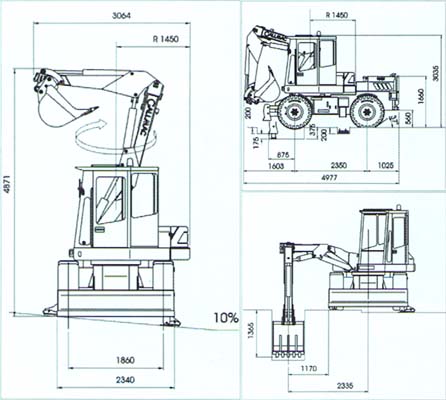

| Dimensions | Max Dimensions (H x W x L) | 120 in. x 92 in. x 196 in. | 3,035 mm x 2,330 mm x 4,980 mm |
| Weight | Operating Weight (Digger / Loader) | 24,251 lbs. / 35,353 lbs. | 11,000 kg / 11,500 kg |

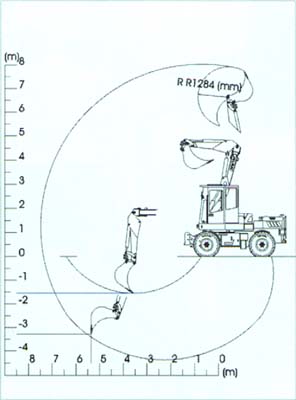

| Digger | Bucket Width Range | 15 to 43 in. | 380 to 1,100 mm |
| Digger | Teeth Breaking Force | 14,551 lbs. | 6,600 kg |
| Digger | Teeth Penetration Force | 7,562 lbs. | 3,430 kg |

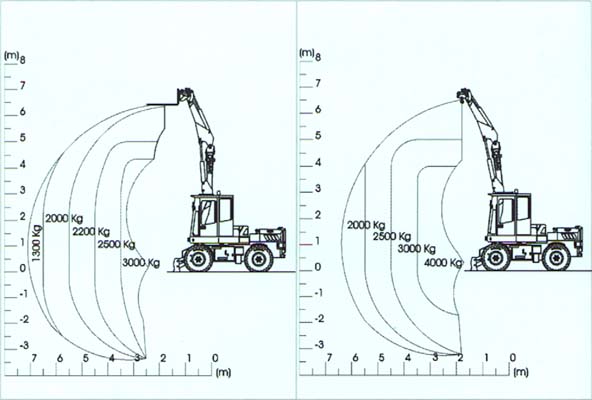

| Elevator | Forks Capacity (Max / Min Radius) | 2,866 lbs. / 6,614 lbs. | 1,300 kg / 3,000 kg |
| Elevator | Hook Capacity (Max / Min Radius) | 4,409 lbs. / 8,818 lbs. | 2,000 kg / 4,000 kg |

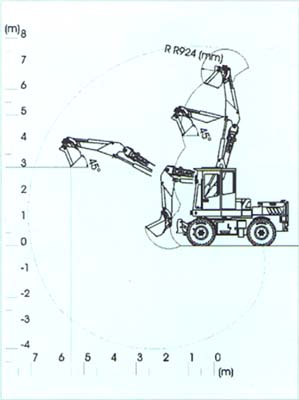

| Loader | Loading Shovel Width & Breaking Force | 92 in. / 10,825 lbs. | 2,330 mm / 4,910 kg |
